Designate配置及部署

Designate目前还在开发过程中, 且文档资料比较匮乏, 此处的介绍的内容就相对比较片面和不是那么严整了, 若有相应的错误,也请包涵并及时指正。

Designate的工作原理

此处有一张图,用来描述designate的运行流程:

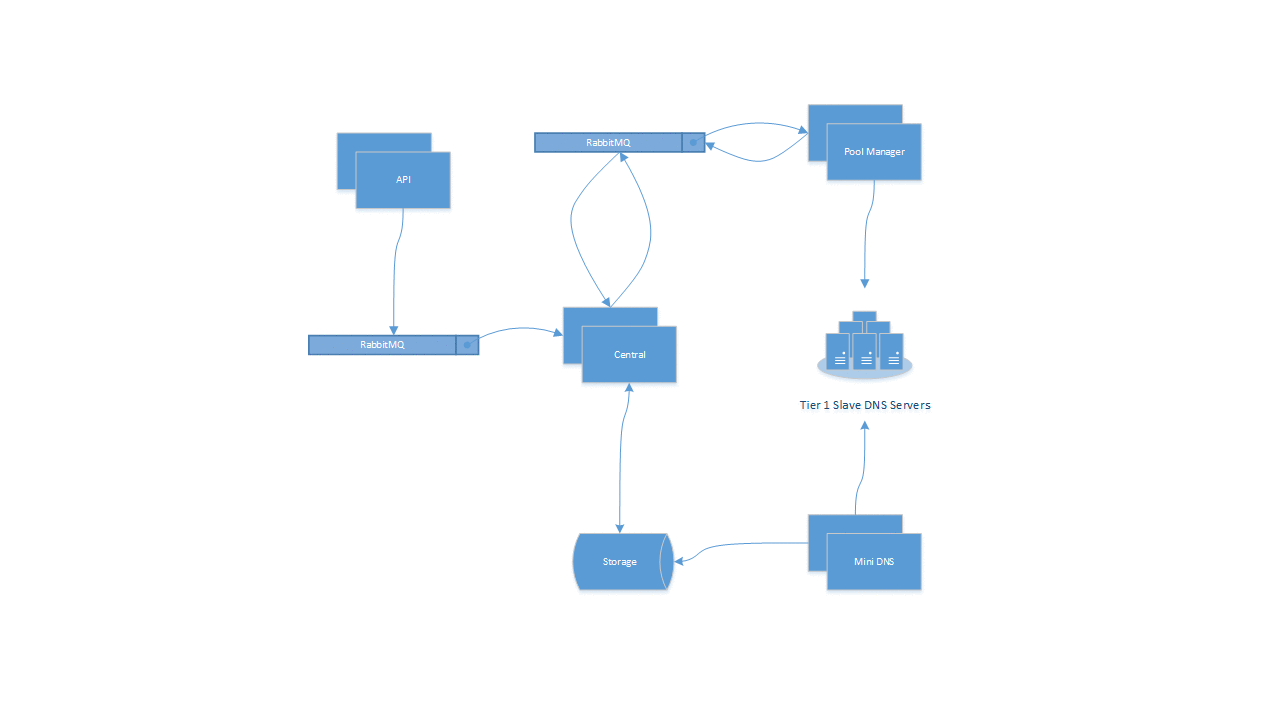

gif动态图片, 参考Designate-MiniDNS-Pools

用户请求designate-api,添加record或者domain
designate-api发送请求至mq中
designate-central接收到mq请求,写入db,同时通过mq触发pool_manager进行更新操作
pool_manager通过rndc(addzone/delzone/notifyzone)三个操作来通知pool_targets中定义的bind来进行操作
bind使用axfr来请求同步mdns
mdns从数据库中读取相应的domain信息来响应axfr请求

Designate的安装

此处只描述和介绍其中一种可用的部署模式(其应该具有多种部署模式, 此处就没有深究了)

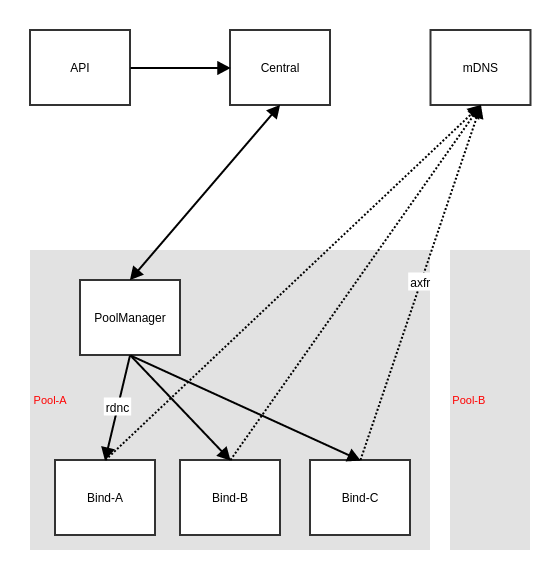

架构如图(DB,MQ略):

按照目前个人的理解, 在kilo版本种, 一个pool_manager进程就管理一个pool, pool中可以指定多个dns-server. 但不一定准确

安装环境:

系统为Ubuntu 12.04
designate-api, designate-central, designate-pool-manager, designate-mdns部署在 172.16.2.100
bind分别部署在172.16.2.101, 172.16.2.102, 172.16.2.103中
测试domain为lnmpy.com
使用kilo版本的designate

配置bind & rndc(只以安装Bind-A为例, 其余类推)

安装 bind

apt-get install bind9 -y

修改/etc/bind/named.conf.options内容为:

options {
        directory "/var/cache/bind";
        dnssec-validation auto;
        auth-nxdomain no;
        allow-new-zones yes;  # 此配置必须加上, 其允许rndc进行zone的相关操作
        listen-on { <your-ip>; };  # 表面bind的53端口是监听在这个网络中
        listen-on-v6 { any; };
};

controls {
        inet 172.16.2.101 port 953
                allow { 172.16.2.100; } keys { "rndc-key"; };
};

# 以下内容来自: rndc-confgen
key "rndc-key" {
        algorithm hmac-md5;
        secret "jmED6H54nY+DD/SRJG6Okw==";
};

修改/etc/bind/rndc.key内容为(secret值保持与named.conf.options中一致):

key "rndc-key" {
        algorithm hmac-md5;
        secret "jmED6H54nY+DD/SRJG6Okw==";
};

在172.16.2.100中调用以下命令进行测试:

rndc -s 172.16.2.101 -p 953 -k /etc/bind/rndc.key addzone lnmpy.com '{ type slave;masters { 172.16.2.100 port 5354;}; file "slave.lnmpy.com.ba4dbff3-a32f-4f54-bb7c-68710f7935a5"; };'

如果没有报错且172.16.2.101机器中的/var/cache/bind/出现了slave.lnmpy.com.ba4dbff3-a32f-4f54-bb7c-68710f7935a5, 则表明bind配置成功.

配置Designate(以全部安装在同一个机器上为例)

安装MySql,RabbitMq, 配置从略:

apt-get install -y rabbitmq-server mysql-server python-dev libmysqlclient-dev

git clone git://github.com/openstack/designate designate
cd designate
git checkout stable/kilo # checkout出指定版本
pip install virtualenv
virtualenv .venv
source .venv/bin/activate
sed -i 's/oslo.config>=1.9.3,<1.10.0  # Apache-2.0/oslo.config>=1.9.3,<=1.11.0  #Apache-2.0/' requirements.txt
pip install -r requirements.txt -i http://pypi.douban.com/simple  # 视网络情况可能会有超时失败多次,重复运行一次就行
while [ $? != 0 ]
do
pip install -r requirements.txt -i http://pypi.douban.com/simple
done
pip install mysql-python functools32 -i http://pypi.douban.com/simple
python setup.py install
cp -R etc/designate /etc/
ls /etc/designate/*.sample | while read f; do sudo cp $f $(echo $f | sed "s/.sample$//g"); done
mkdir /var/log/designate/ /var/cache/designate

修改/etc/designate/designate.conf

[DEFAULT]
verbose = True
debug = True
state_path = /var/lib/designate
logdir = /var/log/designate
notification_driver = messaging
notification_topics = notifications

# 默认的quota值， 按需设置
quota_domains = 100000
quota_domain_recordsets = 100000
quota_domain_records = 100000
quota_recordset_records = 100000

[oslo_messaging_rabbit]
rabbit_userid = guest # 默认不配置RabbitMq的话是guest, 建议修改
rabbit_password = guest
rabbit_virtual_host = /
rabbit_use_ssl = False
rabbit_hosts = 127.0.0.1:5672
[service:central]
[service:api]
auth_strategy = noauth # 此处为了便利, 关闭了auth认证
enable_api_v1 = True
enabled_extensions_v1 = sync, quotas
enable_api_v2 = True
[service:mdns]
threads = 1000
host = 0.0.0.0
port = 5354
tcp_backlog = 100
tcp_recv_timeout = 0.5
query_enforce_tsig = False
[service:pool_manager]
pool_id = 794ccc2c-d751-44fe-b57f-8894c9f5c842
[pool_manager_cache:sqlalchemy]
connection = mysql://root:[email protected]/designate_pool_manager
[storage:sqlalchemy]
connection = mysql://root:[email protected]:3306/designate
connection_debug = 0
[pool:794ccc2c-d751-44fe-b57f-8894c9f5c842]
nameservers = 0f66b842-96c2-4189-93fc-1dc95a08b012, 0f66b842-96c2-4189-93fc-1dc95a08b013
targets = f26e0b32-736f-4f0a-831b-039a415c481e, f26e0b32-736f-4f0a-831b-039a415c481f
[pool_nameserver:0f66b842-96c2-4189-93fc-1dc95a08b012]
port = 53
host = 172.16.2.101
[pool_target:f26e0b32-736f-4f0a-831b-039a415c481e]
options = rndc_host: 172.16.2.101, rndc_port: 953, rndc_key_file: /etc/bind/rndc.key
masters = 172.16.2.100:5354
type = bind9
port = 53
host = 172.16.2.101
[pool_nameserver:0f66b842-96c2-4189-93fc-1dc95a08b013]
port = 53
host = 172.16.2.102
[pool_target:f26e0b32-736f-4f0a-831b-039a415c481f]
options = rndc_host: 172.16.2.102, rndc_port: 953, rndc_key_file: /etc/bind/rndc.key
masters = 172.16.2.100:5354
type = bind9
port = 53
host = 172.16.2.102
[pool_nameserver:0f66b842-96c2-4189-93fc-1dc95a08b014]
port = 53
host = 172.16.2.103
[pool_target:f26e0b32-736f-4f0a-831b-039a415c4820]
options = rndc_host: 172.16.2.103, rndc_port: 953, rndc_key_file: /etc/bind/rndc.key
masters = 172.16.2.100:5354
type = bind9
port = 53
host = 172.16.2.103

初始化数据库

mysql -uroot -pr00t  -e 'drop database if exists designate; create database designate;'
mysql -uroot -pr00t  -e 'drop database if exists designate_pool_manager; create database designate_pool_manager;'

designate-manage database sync
designate-manage pool-manager-cache sync

启动Designate

# 在virtualenv中启动下面四个组件(无顺序要求)
designate-central
designate-api
designate-pool-manager
designate-mdns

如无报错,则表面正常启动, 再将其包装成upstart即可

Designate的API

此处使用了httpie作为客户端,也可以试用postmane或者curl

http 127.0.0.1:9001/v1/servers name=ns.lnmpy.com.

http 127.0.0.1:9001/v1/domains name=lnmpy.com. ttl:=3600 [email protected]

http 127.0.0.1:9001/v1/domains/{domain_id}/records name=www.lnmpy.com. type=A data=192.168.1.101
http 127.0.0.1:9001/v1/domains/{domain_id}/records name=mail.lnmpy.com. type=A data=192.168.1.102

dig @172.16.2.101 www.lnmpy.com
dig @172.16.2.102 www.lnmpy.com
dig @172.16.2.103 www.lnmpy.com

# 如果要创建PTR反向解析的话， 需要再单独创建一个domain
# 注：反向解析域必须以 in-addr.arpa. 结尾， designate只支持在 in-addr.arpa.的域中添加PTR记录
http 127.0.0.1:9001/v1/domains name=1.168.192.in-addr.arpa. ttl:=3600 [email protected]

http 127.0.0.1:9001/v1/domains/{ptr_domain_id}/records name=102.1.168.192.in-addr.arpa. type=PTR data=mail.lnmpy.com.

dig @172.16.2.101 -x 192.168.1.101
dig @172.16.2.102 -x 192.168.1.101
dig @172.16.2.103 -x 192.168.1.101

可以看到,通过dig测试,返回的结果表面3台bind-server均可(包括反向解析)解析www.lnmpy.com.

Designate HA

MQ, DB的HA不必说了。

desigante-api只会涉及到读取DB和rpc调用designate-central, 所以使用nginx在多台机器上部署,都没有问题
desigante-central会被desigante-apirpc调用,但是有oslo.concurrency的存在,也只会有一个被调用到, 所以在不同的机器中部署,也是没有问题的。其被调用后会发送一条mq消息给designate-pool-manager
由于mq的消息是独占性的,desigante-pool-manager之间的消息自然也不会发生抢占,部署多个自然也是允许的
desigante-mdns逻辑上来讲也是只读取db并且响应axfr请求, 只要pool中的bind能够实现multi-master即可

修改pool_target内容为:

[pool_target:f26e0b32-736f-4f0a-831b-039a415c4820]
...
masters = 172.16.2.100:5354, 172.16.2.200:5354   # masters列表
...

那么/var/cache/bind/3bf305731dd26307.nzf中对应的zone就变成了:

...
zone lnmpy.com { type slave; masters { 172.16.2.100 port 5354; 172.16.2.200 port 5354;}; file "slave.lnmpy.com.60987de9-97a1-4ecf-a124-3f148b21af78"; };
...

这样,当其中一个mdns down了之后,bind依然能够sync另一个mdns
